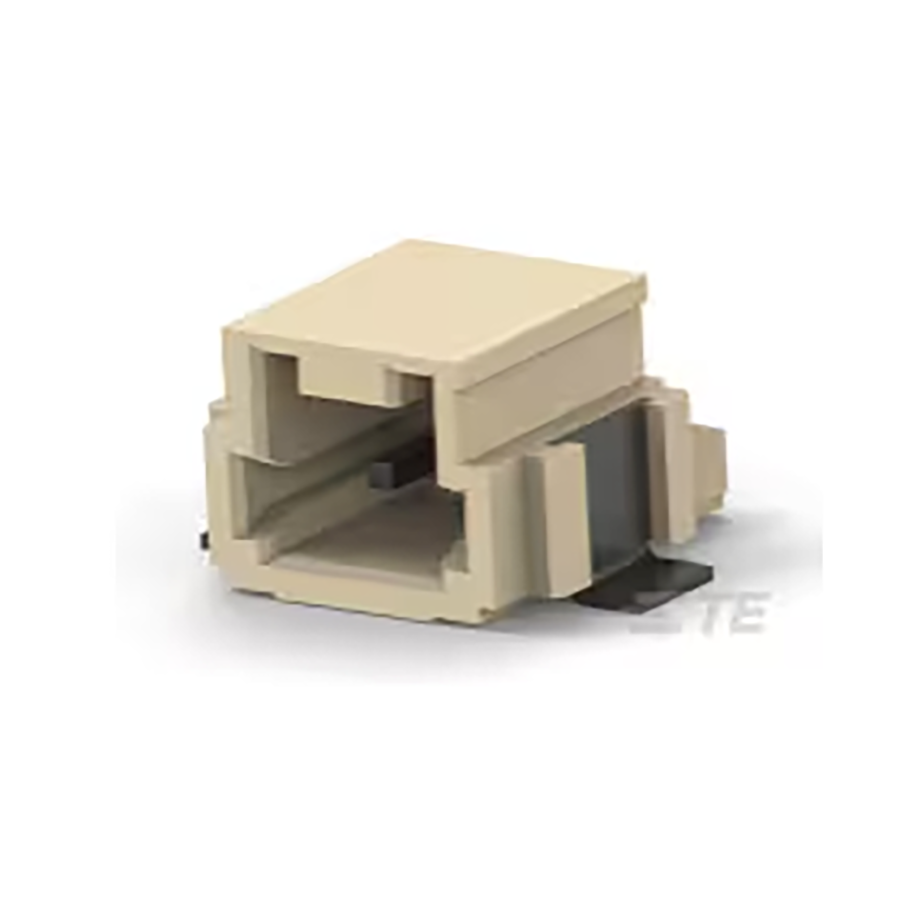

292228-2
Manufacturer:
TE Connectivity
Mfr.Part #:
292228-2
Datasheet:
Description:
Headers and Wire Housings SMD/SMT Header, Pin Number of Positions:2 Pitch:1.5 mm
| Parameter | Value |
|---|---|
| Length | 7.5 mm |
| Width | 4.8768 mm |
| Termination | SMD/SMT, Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -30 °C |
| Height | 7.7 mm |
| Packaging | Reel |
| Depth | 9.2 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Pitch | 1.5 mm |
| Current Rating | 2 A |
| Max Voltage Rating (DC) | 50 V |
| Flammability Rating | UL94 V-0 |
| Approvals | UL |
| Orientation | Right Angle |
| Operating Supply Voltage | 50 V |
| Lifecycle Status | Production (Last Updated: 1 week ago) |
| Color | Beige |
| Gender | Pin (Male) |
| Number of Contacts | 2 |
| ELV | Compliant |
| Connector Type | Header, Pin |
| Wire/Cable Gauge | 24 AWG |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Row Spacing | 1.5 mm |
| Housing Material | Nylon |
| Wire/Cable Type | Discrete |
| Connector System | Wire-to-Board |
| Contact Style | Pin |
| Contact Resistance | 30 mΩ |
| Max Voltage Rating (AC) | 50 V |
| Shape | Rectangular |
| Contact Current Rating | 2 A |
| Housing Color | Natural |
| Plating | Tin |
| Insulation Diameter | 1.0414 mm |
| PCB Mounting Orientation | Right Angle |
| PCB Thickness | 787.4 µm |
| Contact Gender | Male |
| Mating Post Length | 2.4 mm |
| Contact Shape | Square |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 1 week ago) |
| Sealable | No |
| Mating Retention | With |
| Contact Finish Thickness - Mating | 1 µm |
| PCB Mount Retention | With |
| PCB Mount Alignment | Without |
Stock: 1848
Distributors
pcbx
pcbxUnit Price$0.43773
Ext.Price$0.43773
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.43773 | $0.43773 |
| 10 | $0.41207 | $4.12070 |
| 25 | $0.40524 | $10.13100 |
| 50 | $0.40182 | $20.09100 |
| 100 | $0.37959 | $37.95900 |
| 300 | $0.34998 | $104.99400 |
| 500 | $0.32268 | $161.34000 |
| 1000 | $0.29751 | $297.51000 |
